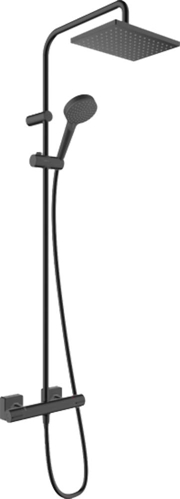

Vernis Shape Showerpipe 230 1jet with thermostat

Article features

• consists of: overhead shower, hand shower, shower thermostat, shower hose, slider, shower bar
• overhead shower Vernis Shape 230 1jet
• shower head size overhead shower: 230 x 170 mm
• spray type overhead shower: Rain
• spray type hand shower: Rain, IntenseRain
• flow rate of hand shower at 3 bar: 15,2 l/min
• maximum flow rate for Showerpipe at 3 bar: 15,2 l/min
• minimum flow pressure: 1 bar
• max. operating pressure: 10 bar
• ball-joint: overhead shower angle adjustable
• height-adjustable slider with locking push-button slider
• shower arm length overhead shower: 426 mm
• thermostat Vernis
• SafetyStop at 40°C
• adjustable hot water limitation
• outlets controlled via turning handle
• suitable for continuous flow water heaters
• mounting type: exposed installation
• connection dimension: DN15
• connection thread: G ½
• centre distance: 150 ± 12 mm
• intrinsically safe against backflow
• shower bar diameter: 19 mm
• 2 functions
