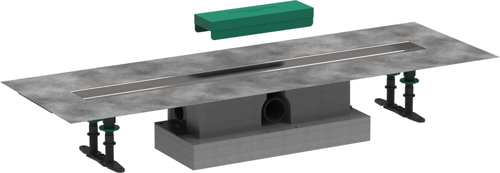

uBox universal Complete set for standard installation - 800 for shower drains finish sets

Article features

• consists of: installation set, basic set, pre-assembled sealing membrane, trap, height adjustment boards
• suitable for all RainDrain Rock and RainDrain Match finish sets
• where to use: new construction, renovation
• water seal height: 50 mm
• drainage capacity with siphon: up to 42 l/min
• drainage capacity with Dryphon: up to 60 l/min
• connection diameter: DN50
• direction of outlet: horizontal
• connection: 3-sided
• incl. height adjustment feet and tiling aid for installation
• easy fixation to the floor with mounting bracket
• height adjustable with the foam boards
• with integrated slope
• mounting type: wall-mounted, free in the floor
• easy to clean siphon
• removable siphon
• material installation set: Stainless Steel 304 (1.4301)
