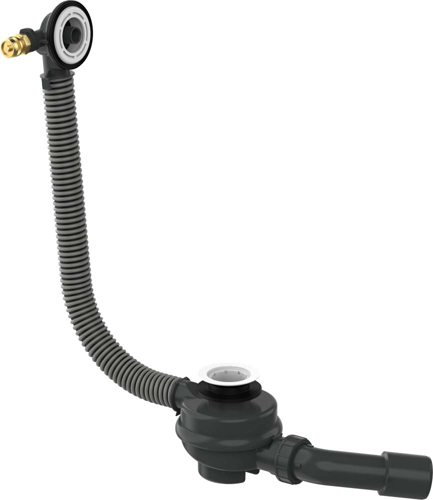

Tubset universal Basic set for waste and overflow set for bathtubs

Article features

• consists of: basic set, odour trap
• suitable for bathtubs made of cast iron, steel and plastic, to fit to both standard and extra-large tubs, bathtubs with waste outlet diameter 52 mm
• with G 1/2" male thread connection 
• rotatable connection bent, diameter: 40/50 mm
• easy waste and overflow installation with included tool
• double-sided seals on outlet and overflow
• flat version: only 46 mm is needed behind bathtub
• easy cleaning with access for plumber's snake
• shortenable and flexible overflow hose
• rotatable siphon housing
• pipe outer diameter drain pipe: 50 mm
• odour trap backwater height is 50 mm
• drainage capacity accumulation height 300 mm: 64 l/min
• overflow capacity accumulation height 60 mm above centre of overflow hole: 36 l/min
• material: Polypropylene (PP)
• material waste set: Polypropylene (PP), ABS
