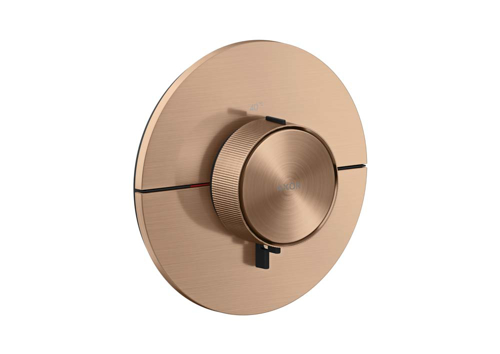

ShowerSelect ID Thermostat HighFlow for concealed installation round

Article features

• temperature and water flow control, precise temperature control thanks to vertical handle structure and haptic feedback from the thermostat handle
• water flow control with stop function
• thermostat cartridge
• maximum flow rate at 1 bar: 12,8 l/min
• flow rate upper outlet: 24 l/min
• flow rate lower outlet: 23 l/min
• flow rate by simultaneous use of all outlets: 34,8 l/min
• maximum flow rate at 3 bar: 24 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• flat escutcheon for more space in the shower
• escutcheon can be aligned by +/- 3°
• easy installation due to pre-assembled function block
• handles always at the same height regardless of the installation depth of the basic set
• Safety stop at 40 °C
• temperature limitation adjustable
• material button: metal
• material handles: metal
• connection type: basic set iBox universal 2 (# 01400180)
