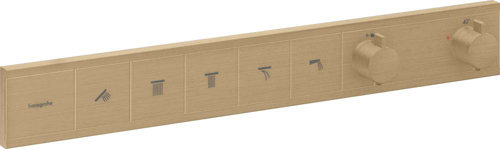

RainSelect Thermostat for concealed installation for 5 functions

Article features

• 5 functions
• simultaneous use of several outlets
• Select push-button on/off control for 5 functions
• depending on volume flow and installation situation approx. 50% flow rate reduction and integrated shut off function
• thermostat cartridge, Start/stop valve to operate the functions
• flow rate of hand shower at 3 bar: 16,7 l/min
• maximum flow rate at 1 bar: 7,8 l/min
• flow rate per outlet: 26 l/min
• flow rate by simultaneous use of all outlets: 38 l/min
• maximum flow rate at 3 bar: 38 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• Safety stop at 40 °C
• temperature limitation adjustable
• non-return valve
• connection type: basic set
• Thermostat is delivered with buttons handshower, PowderRain, Waterfall, Rain large, shoulder shower
