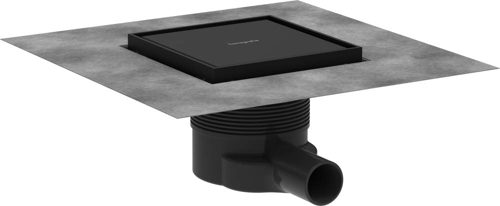

RainDrain Brilliance Complete set point drain 150/150 tileable rear cover

Article features

• consists of: point drain, installation set, basic set, pre-assembled sealing membrane, grate removal tool, trap, screed protection cover
• grate material: Stainless Steel 304 (1.4301)
• water seal height: up to max. 50 mm
• connection diameter: DN40
• direction of outlet: horizontal
• easy to clean surface
• easy adjustment to tile thickness with height adjustable frame (7 – 18 mm)
• up to 41 l/min drainage capacity
• where to use: new construction, renovation
• removable siphon
• rotatable and adjustable siphon body
• easy to clean siphon
• grate removal tool allows easy removal of the finish set
• with removable hair strainer
• type of odour seal: fluid
• minimal construction height 76 mm
• material siphon: ABS
• mounting type: free in the floor
• tileable on the back side
• simplified installation due to the cutable siphon
• tile inlay depth: 12 mm
• suitable for primary and secondary drainage
