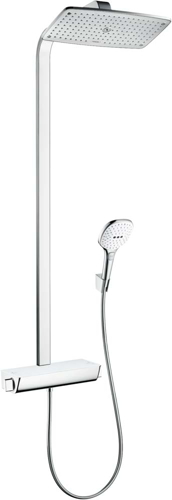

Raindance E Showerpipe 360 1jet EcoSmart with thermostat

Article features

• consists of: overhead shower, hand shower, shower thermostat, shower hose, shower holder, shower bar
• overhead shower Raindance E 360 Air
• shower head size overhead shower: 360 x 190 mm
• spray type overhead shower: RainAir
• shelf made of safety glass
• surface shelf: white glass
• flow rate RainAir spray at 3 bar: 7,6 l/min
• spray type hand shower: RainAir, Rain, Whirl
• maximum flow rate for Showerpipe at 3 bar: 9 l/min
• minimum flow pressure: 1 bar
• max. operating pressure: 10 bar
• ball-joint: overhead shower angle adjustable
• in case of installation on existing G ¾ connections, adaptor no.02026000 must be used
• shower arm length overhead shower: 380 mm
• CoolContact thermostat: Prevents the housing from heating up, making showering even safer
• thermostat Ecostat Select
• SafetyStop at 40°C
• adjustable hot water limitation
• outlets controlled via turning handle
• suitable for continuous flow water heaters
• mounting type: exposed installation
• connection dimension: DN15
• connection thread: G ½
• centre distance: 150 ± 12 mm
• intrinsically safe against backflow
• bar width: 44 mm
• 2 functions
