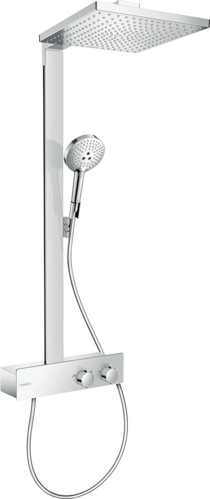

Raindance E Showerpipe 300 1jet with ShowerTablet 350

Article features

• consists of: overhead shower, hand shower, shower thermostat, slider, shower hose, shower bar
• overhead shower Raindance E 300 Air 1jet
• shower head size overhead shower: 300 x 300 mm
• spray type overhead shower: RainAir
• surface shelf: anodized aluminium
• spray type hand shower: RainAir, Rain, Whirl
• maximum flow rate for Showerpipe at 3 bar: 16 l/min
• minimum flow pressure: 1,5 bar
• max. operating pressure: 10 bar
• 90° position adjustable slider, pivots left and right, up and down
• shower arm length overhead shower: 405 mm
• CoolContact thermostat: Prevents the housing from heating up, making showering even safer
• thermostat ShowerTablet 350
• SafetyStop at 40°C
• adjustable hot water limitation
• outlets controlled via turning handle
• Outlets may not be operated simultaneously
• suitable for continuous flow water heaters
• mounting type: exposed installation
• connection dimension: DN15
• connection thread: G ½
• centre distance: 150 ± 12 mm
• intrinsically safe against backflow
• bar width: 61 mm
• 2 functions
