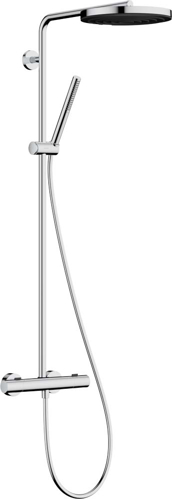

Pulsify S Puro Showerpipe 260 1jet EcoSmart with Ecostat Fine

Article features

• consists of: overhead shower, hand shower, shower thermostat, shower bar, slider, shower hose
• overhead shower Pulsify 260 1jet
• shower head size overhead shower: 260 mm
• spray type overhead shower: PowderRain
• spray disc surface: graphite
• Fast Drain empties the overhead shower from an angle of 10°
• removable shower head
• flow rate PowderRain spray at 3 bar: 7,8 l/min
• spray type hand shower: PowderRain
• flow rate of hand shower at 3 bar: 6 l/min
• maximum flow rate for Showerpipe at 3 bar: 8 l/min
• minimum flow pressure: 1,6 bar
• max. operating pressure: 10 bar
• ball-joint: overhead shower angle adjustable
• height-adjustable slider with locking push-button slider
• slider rotatable on the pipe for left or right operation
• shower arm length overhead shower: 460 mm
• swivel shower arm: swivelling shower arm
• thermostat Ecostat Fine
• SafetyStop at 40°C
• adjustable hot water limitation
• outlets controlled via turning handle
• Outlets may not be operated simultaneously
• suitable for continuous flow water heaters
• mounting type: exposed installation
• connection dimension: DN15
• connection thread: G ½
• centre distance: 150 ± 12 mm
• pipe can be shortened in height
• intrinsically safe against backflow
• shower bar diameter: 22 mm
• 2 functions
• EU taxonomy: max. 8 l/min - Do No Significant Harm (DNSH)
