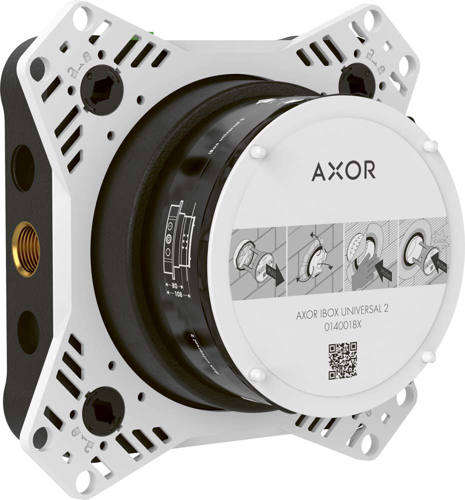

iBox universal 2 Basic set

Article features

• suitable for all new shower, bath tub and thermostat finish sets for concealed installation (AXOR ShowerSelect ID)
• in conjunction with adapter plate (# 13588000) compatible with other concealed shower, bath tub and thermostat finish sets
• material: dezincification brass, EPP foam, heat and sound insulating
• connection thread: Rp ½
• connection dimension: DN15
• rotationally-symmetric installation
• sound-decoupled installation
• flexible mounting ring for different mounting situations
• mounting ring adjustable in 5 mm steps
• mounting ring suitable for front and rear installation
• no shortening necessary thanks to sliding sleeve
• support aid for the spirit level
• integrated spirit level for correct horizontal and vertical alignment
• sealing foil permanently fixed
• minimum mounting depth: 80 mm
• maximum mounting depth: 108 mm
