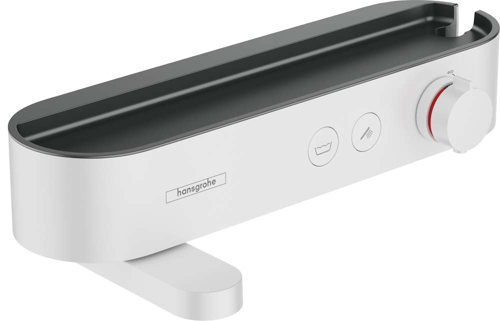

ShowerTablet Select Bath thermostat 400 for exposed installation

Article features

• rotatable bath spout
• 2 functions
• simultaneous utilization of 2 functions
• temperature and water flow control
• Select push-button on/off control for 2 outlets
• water flow control with stop function
• CoolContact thermostat: Prevents the housing from heating up, making showering even safer
• maximum flow rate at 3 bar: 20,9 l/min
• flow rate for bath spout at 3 bar: 20,9 l/min
• flow rate of hand shower at 3 bar: 15,8 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• Safety stop at 40 °C
• temperature limitation adjustable
• with isolated water conduction
• non-return valve
• protected against backflow, according to DIN EN 1717
• with silencer
• suitable for continous flow water heaters
• material handles: plastic
• shelf made of plastic
• surface shelf: graphite
• connection dimension: DN15
• connection type: G ½
• centre distance: 150 ± 12 mm
• dirt filter included
• thermostat is delivered with buttons hand shower and bath tub
