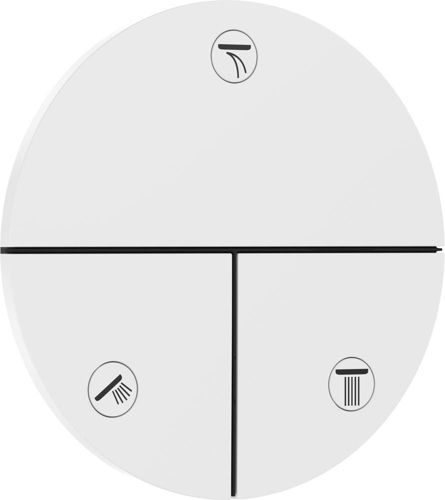

ShowerSelect Comfort S Valve for concealed installation for 3 functions

Article features

• 3 functions
• simultaneous use of several outlets
• comfortable turning on / off of outlets with large Select-paddle
• Start/stop valve to operate the functions
• connection type: basic set iBox universal 2 (# 01500180)
• flow rate upper outlet: 26 l/min
• flow rate left and right: 26 l/min
• maximum flow rate at 3 bar: 32 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• escutcheon can be aligned by +/- 3°
• easy installation due to pre-assembled function block
• valve is delivered with buttons Rain small, Rain large, hand sower, Waterfall, bath tub
