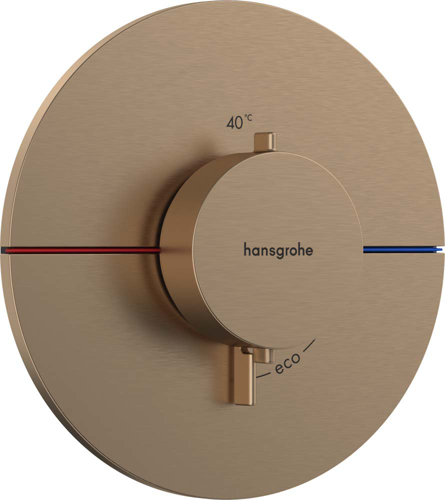

ShowerSelect Comfort S Thermostat for concealed installation

Article features

• 1 function
• temperature and water flow control
• water flow control with stop function
• thermostat cartridge
• maximum flow rate at 1 bar: 15,6 l/min
• flow rate upper outlet: 32 l/min
• flow rate lower outlet: 32 l/min
• flow rate by simultaneous use of all outlets: 34,8 l/min
• maximum flow rate at 3 bar: 34,8 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• escutcheon can be aligned by +/- 3°
• easy installation due to pre-assembled function block
• handles always at the same height regardless of the installation depth of the basic set
• Safety stop at 40 °C
• temperature limitation adjustable
• the thermostat offers the possibility for thermal disinfection
• material handles: metal
• connection type: basic set iBox universal 2 (# 01500180)
