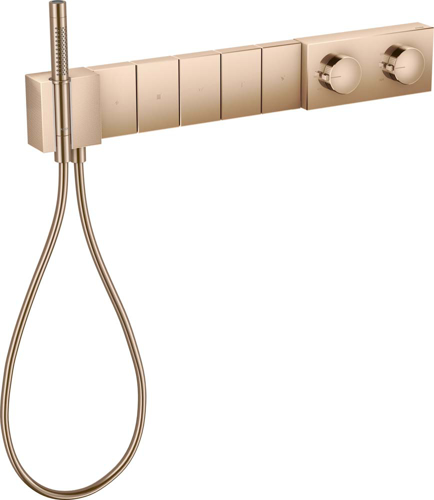

Edge Thermostatic module Select 680/100 for concealed installation for 5 functions - diamond cut

Article features

• consists of: thermostatic module, shower holder, baton hand shower, shower hose
• 5 functions
• simultaneous use of several outlets
• Select push-button on/off control for 5 functions
• depending on volume flow and installation situation approx. 50% flow rate reduction and integrated shut off function
• thermostat cartridge, Start/stop valve to operate the functions
• flow rate of hand shower at 3 bar: 13 l/min
• maximum flow rate at 1 bar: 20 l/min
• maximum flow rate at 3 bar: 38 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• Safety stop at 40 °C
• temperature limitation adjustable
• for shower hoses with a cylindrical nut
• connection type: basic set
• Thermostat is delivered with buttons Rain large, handshower, MonoRain, PowderRain small and PowderRain large
