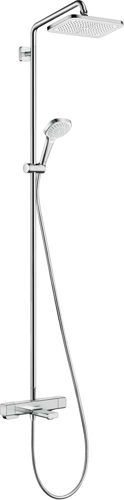

Croma E Showerpipe 280 1jet with bath thermostat

Article features

• consists of: overhead shower, hand shower, bath thermostat, shower hose, slider, shower bar
• shower head size overhead shower: 280 x 170 mm
• spray type overhead shower: RainAir
• spray disc surface: chrome
• flow rate bath filler: 20 l/min
• spray type hand shower: Massage spray, IntenseRain, SoftRain
• flow rate of hand shower at 3 bar: 13,6 l/min
• maximum flow rate for Showerpipe at 3 bar: 20,3 l/min
• minimum flow pressure: 1,7 bar
• max. operating pressure: 10 bar
• ball-joint: overhead shower angle adjustable
• height-adjustable slider with locking push-button slider
• swivel shower arm
• CoolContact thermostat: Prevents the housing from heating up, making showering even safer
• thermostat Ecostat E
• SafetyStop at 40°C
• adjustable hot water limitation
• suitable for continuous flow water heaters
• mounting type: exposed installation
• connection thread: G ½
• centre distance: 150 ± 12 mm
• pipe can be shortened in height
• intrinsically safe against backflow
• shower bar diameter: 22 mm
• 3 functions
• flow rate RainAir spray at 3 bar: 15 l/min
