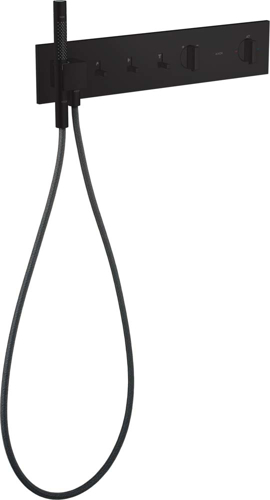

AXOR ShowerComposition Thermostatic module 540/110 for concealed installation for 3 functions

Article features

• consists of: thermostatic module, shower holder, baton hand shower, textile shower hose
• 3 functions
• simultaneous use of several outlets
• sliding movement of handle for switching water on and off, temperature and water flow control
• depending on volume flow and installation situation approx. 50% flow rate reduction and integrated shut off function
• thermostat cartridge, Start/stop valve to operate the functions
• spray type hand shower: Rain, MonoRain
• flow rate of hand shower at 3 bar: 11,4 l/min
• maximum flow rate at 1 bar: 16,1 l/min
• flow rate per outlet: 26 l/min
• flow rate by simultaneous use of all outlets: 32,7 l/min
• maximum flow rate at 3 bar: 32,7 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• Safety stop at 40 °C
• temperature limitation adjustable
• non-return valve
• connection type: basic set
