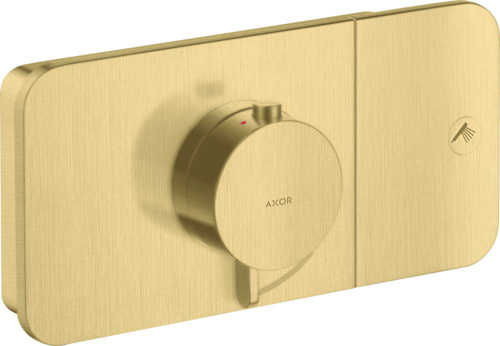

AXOR One Thermostatic module for concealed installation for 1 function

Article features

• 1 function
• comfortable turning on / off of outlets with large Select-paddle
• Eco-Function: flow rate regulation via lever handle, depending on volume flow and installation situation approx. 50% flow rate reduction
• thermostat cartridge, Start/stop valve to operate the functions
• flow rate per outlet: 24 l/min
• maximum flow rate at 3 bar: 24 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 5 bar
• Safety stop at 40 °C
• temperature limitation adjustable
• the thermostat offers the possibility for thermal disinfection
• non-return valve
• connection type: basic set
• thermostat is delivered with button hand shower
