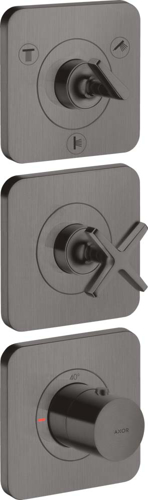

AXOR Citterio E Thermostatic module 380/120 for concealed installation for 3 functions with escutcheons

Article features

• consists of: shower thermostat, shut-off valve, diverter valve
• simultaneous utilization of 2 functions
• thermostat cartridge
• maximum flow rate at 1 bar: 19 l/min
• flow rate lower outlet: 37,9 l/min
• flow rate left and right: 37,9 l/min
• maximum flow rate at 3 bar: 42 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• combination of highflow thermostat with shut-off valve and Quattro diverter valve for controlling 3 consumers
• Safety stop at 40 °C
• temperature limitation adjustable
• connection dimension: DN20
• connection type: basic set
