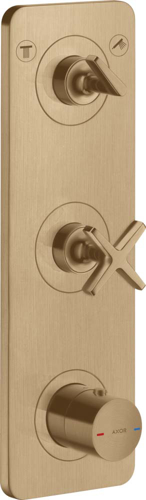

AXOR Citterio E Thermostatic module 380/120 for concealed installation for 2 functions with plate

Article features

• 2 functions
• simultaneous utilization of 2 functions
• thermostat cartridge
• flow rate upper outlet: 42 l/min
• flow rate lower outlet: 40 l/min
• maximum flow rate at 3 bar: 42 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• combination of highflow thermostat with shut-off valve and Duo diverter valve for controlling 2 functions
• Safety stop at 40 °C
• temperature limitation adjustable
• connection dimension: DN20
• connection type: basic set
