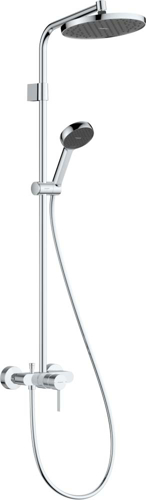

Activera S Showerpipe 240 1jet EcoSmart with single lever mixer Varia

Article features

• consists of: shower bar, overhead shower, hand shower, slider, single lever shower mixer, shower hose
• overhead shower Activera S 240 1jet
• shower head size overhead shower: 240 mm
• spray type overhead shower: Rain
• spray disc surface: graphite
• FlexPower: nozzles automatically adjust to water pressure by opening and closing
• QuickClean+: avoid limescale deposits thanks to the elasticity of the nozzles
• flow regulator: 8 l/min (with possible tolerances -20 %)
• spray type hand shower: Rain, ImpactRain
• flow rate of hand shower at 3 bar: 7,8 l/min
• maximum flow rate for Showerpipe at 3 bar: 8 l/min
• minimum flow pressure: 0,5 bar
• max. operating pressure: 10 bar
• ball-joint: overhead shower angle adjustable
• convenient spray selection via Select button on the hand shower
• variable wall support
• variable drilling hole distance: 750 - 850 mm
• pipe can be shortened in height
• shower bar diameter: 22 mm
• height-adjustable hand shower holder
• shower arm length overhead shower: 350 mm
• suitable for continuous flow water heaters with an output of 18 kW
• mounting type: exposed installation
• connection dimension: DN15
• connection thread: G ½
• centre distance: 150 ± 12 mm
• ceramic cartridge
• temperature limitation adjustable
• 2 functions
• EU taxonomy: max. 8 l/min - Do No Significant Harm (DNSH)
• removable shower head
• slider rotatable on the pipe for left or right operation
• flow rate Rain spray at 3 bar: 7,8 l/min
