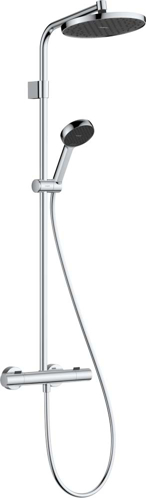

Activera S Showerpipe 240 1jet EcoSmart mit Ecostat Fine Varia

Article features

• consists of: overhead shower, hand shower, shower thermostat, shower bar, slider, shower hose
• overhead shower Activera S 240 1jet
• shower head size overhead shower: 240 mm
• spray type overhead shower: Rain
• spray disc surface: graphite
• removable shower head
• flow regulator: 8 l/min (with possible tolerances -20 %)
• spray type hand shower: Rain, ImpactRain
• flow rate of hand shower at 3 bar: 7,8 l/min
• maximum flow rate for Showerpipe at 3 bar: 8 l/min
• max. operating pressure: 10 bar
• FlexPower: nozzles automatically adjust to water pressure by opening and closing
• convenient spray selection via Select button on the hand shower
• QuickClean+: avoid limescale deposits thanks to the elasticity of the nozzles
• ball-joint: overhead shower angle adjustable
• height-adjustable slider with locking push-button slider
• slider rotatable on the pipe for left or right operation
• shower arm length overhead shower: 344 mm
• thermostat Ecostat Fine
• SafetyStop at 40°C
• adjustable hot water limitation
• temperature and water flow control
• Outlets may not be operated simultaneously
• suitable for continuous flow water heaters
• mounting type: exposed installation
• connection dimension: DN15
• connection thread: G ½
• centre distance: 150 ± 12 mm
• variable wall support
• variable drilling hole distance: 750 - 850 mm
• pipe can be shortened in height
• intrinsically safe against backflow
• shower bar diameter: 22 mm
• 2 functions
• EU taxonomy: max. 8 l/min - Do No Significant Harm (DNSH)
